Shader曲线总结

https://img-blog.csdnimg.cn/20200217093330906.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzIzMDMwODQz,size_16,color_FFFFFF,t_70

Impulse 曲线

https://img-blog.csdnimg.cn/20200217093418957.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzIzMDMwODQz,size_16,color_FFFFFF,t_70

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
#ifdef GL_ES
precision mediump float;
#endif

uniform vec2 u_resolution;
uniform vec2 u_mouse;
uniform float u_time;

//  Function from Iñigo Quiles
//  www.iquilezles.org/www/articles/functions/functions.htm
float impulse( float k, float x ){
    float h = k*x;
    return h*exp(1.0-h);
}

float plot(vec2 st, float pct){
  return  smoothstep( pct-0.02, pct, st.y) -
          smoothstep( pct, pct+0.02, st.y);
}

void main() {
    vec2 st = gl_FragCoord.xy/u_resolution;

    float y = impulse(12.,st.x);

    vec3 color = vec3(y);

    float pct = plot(st,y);
    color = (1.0-pct)*color+pct*vec3(0.0,1.0,0.0);

    gl_FragColor = vec4(color,1.0);
}

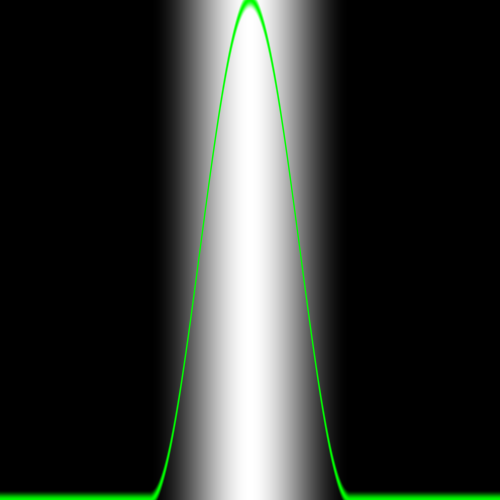

cubicPulse 曲线

https://img-blog.csdnimg.cn/2020021709343593.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzIzMDMwODQz,size_16,color_FFFFFF,t_70

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

#ifdef GL_ES
precision mediump float;
#endif

uniform vec2 u_resolution;
uniform vec2 u_mouse;
uniform float u_time;

//  Function from Iñigo Quiles
//  www.iquilezles.org/www/articles/functions/functions.htm
float cubicPulse( float c, float w, float x ){
    x = abs(x - c);
    if( x>w ) return 0.0;
    x /= w;
    return 1.0 - x*x*(3.0-2.0*x);
}

float plot(vec2 st, float pct){
  return  smoothstep( pct-0.02, pct, st.y) -
          smoothstep( pct, pct+0.02, st.y);
}

void main() {
    vec2 st = gl_FragCoord.xy/u_resolution;

    float y = cubicPulse(0.5,0.2,st.x);

    vec3 color = vec3(y);

    float pct = plot(st,y);
    color = (1.0-pct)*color+pct*vec3(0.0,1.0,0.0);

    gl_FragColor = vec4(color,1.0);
}

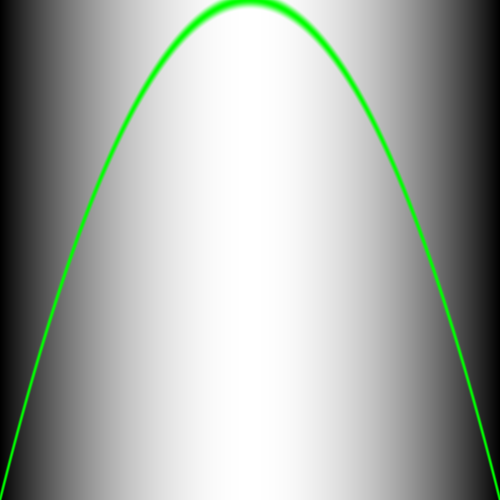

parabola 曲线

https://img-blog.csdnimg.cn/20200217093451913.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzIzMDMwODQz,size_16,color_FFFFFF,t_70

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
#ifdef GL_ES
precision mediump float;
#endif

uniform vec2 u_resolution;
uniform float u_time;

//  Function from Iñigo Quiles
//  www.iquilezles.org/www/articles/functions/functions.htm
float parabola( float x, float k ){
    return pow( 4.0*x*(1.0-x), k );
}

float plot(vec2 st, float pct){
  return  smoothstep( pct-0.02, pct, st.y) -
          smoothstep( pct, pct+0.02, st.y);
}

void main() {
    vec2 st = gl_FragCoord.xy/u_resolution;

    float y = parabola(st.x,1.0);

    vec3 color = vec3(y);

    float pct = plot(st,y);
    color = (1.0-pct)*color+pct*vec3(0.0,1.0,0.0);

    gl_FragColor = vec4(color,1.0);
}

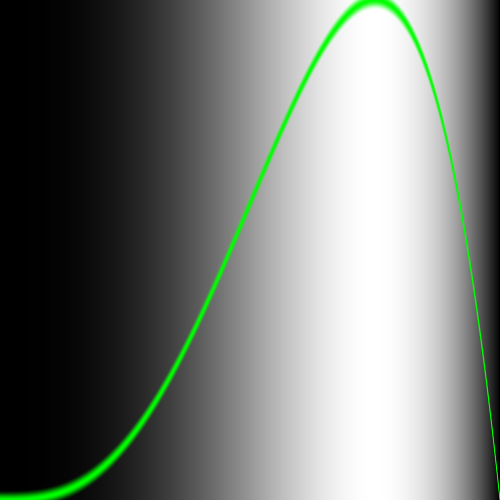

pcurve 曲线

https://img-blog.csdnimg.cn/20200217093500487.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzIzMDMwODQz,size_16,color_FFFFFF,t_70

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
#ifdef GL_ES
precision mediump float;
#endif

uniform vec2 u_resolution;
uniform vec2 u_mouse;
uniform float u_time;

//  Function from Iñigo Quiles
//  www.iquilezles.org/www/articles/functions/functions.htm
float pcurve( float x, float a, float b ){
    float k = pow(a+b,a+b) / (pow(a,a)*pow(b,b));
    return k * pow( x, a ) * pow( 1.0-x, b );
}

float plot(vec2 st, float pct){
  return  smoothstep( pct-0.02, pct, st.y) -
          smoothstep( pct, pct+0.02, st.y);
}

void main() {
    vec2 st = gl_FragCoord.xy/u_resolution;
    float y = pcurve(st.x,3.0,1.0);
    vec3 color = vec3(y);
    float pct = plot(st,y);
    color = (1.0-pct)*color+pct*vec3(0.0,1.0,0.0);

    gl_FragColor = vec4(color,1.0);
}

多项式构造函数:http://www.flong.com/texts/code/shapers_poly/

指数构造函数:http://www.flong.com/texts/code/shapers_exp/

圆与椭圆的造型函数:http://www.flong.com/texts/code/shapers_circ/

贝塞尔和其他参数化造型函数:http://www.flong.com/texts/code/shapers_bez/
